Pepperl+Fuchs
326161-0175
Inductive Proximity Sensor, Ø30mm, 3-Wire, 25mm Range, NPN NO, M12, Returns of This Item Must Be Approved by Manufacturer
$122.76
Product image is representative only, please verify specifications.
326161-0109
Alt: NBB5-18GM50-E0-V1, (Was 084194)
$85.53

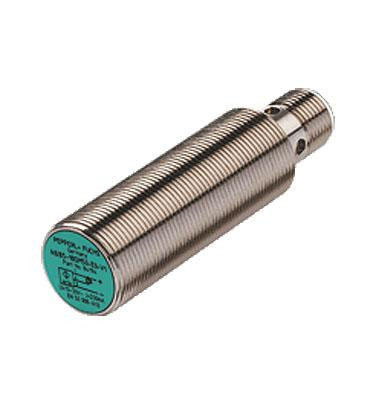

Inductive Proximity Sensor, Ø18mm, Flush, 10-30VDC, 5mm Range, NPN NO, M12 4-Pin, Conn, IP67
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Switching Function: Normally Open (NO)
- Output Type: NPN
- Rated Operating Distance: 5 mm
- Assured Operating Distance: 0 - 4.05 mm
- Operating Voltage: 10 - 30 V
- Switching Frequency: 0 - 800 Hz
- Operating Current: 0 - 200 mA
- Switching State Indicator: Multihole LED, yellow
- Installation: Flush
- Connection Type: Connector M12 x 1 , 4-pin
- Housing Material/Sensing Face: PBT
