$22.70
0626044163
Alt: 626044163, BK63HU 1P D3A 10kA 277VAC UL489
$18.08

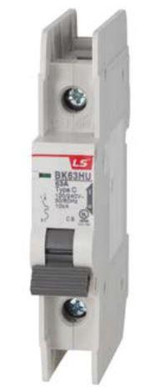

MCB, UL489, 1-Pole, D-Curve, 3 Amp, 10kA, 277VAC, Thermal Magnetic Miniature Circuit Breaker
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
LSIS (formerly LG Industrial Solutions) offers miniature circuit breakers in both UL1077 and UL489.
UL1077 miniature circuit breakers (BK63H) are suitable for overload and short circuit protection while UL489 miniature circuit breakers (BK63HU) are used for branch circuit protection.
The BK63H series (UL1077) and the BK63HU series (UL489) are both available in 1, 2, 3 or 4 poles, in B, C or D trip curves and from 1 to 63 amp.
Marshall Wolf Automation is your authorized stocking LSIS distributor.
Features Include:
- Rated Frequency: 50/60 Hz
- Reference Temperature: 40°C
- Trip Type: Thermal Magnetic
- Type of Terminals: Terminal with stirrup(Indirect pressure)
- Tightening Torque: 2Nm (17.5 lbf-in)
- Installation: Mounting on 35mm din rail
