047568
Alt: 47568, NBN3-F31-E8-K
$203.43

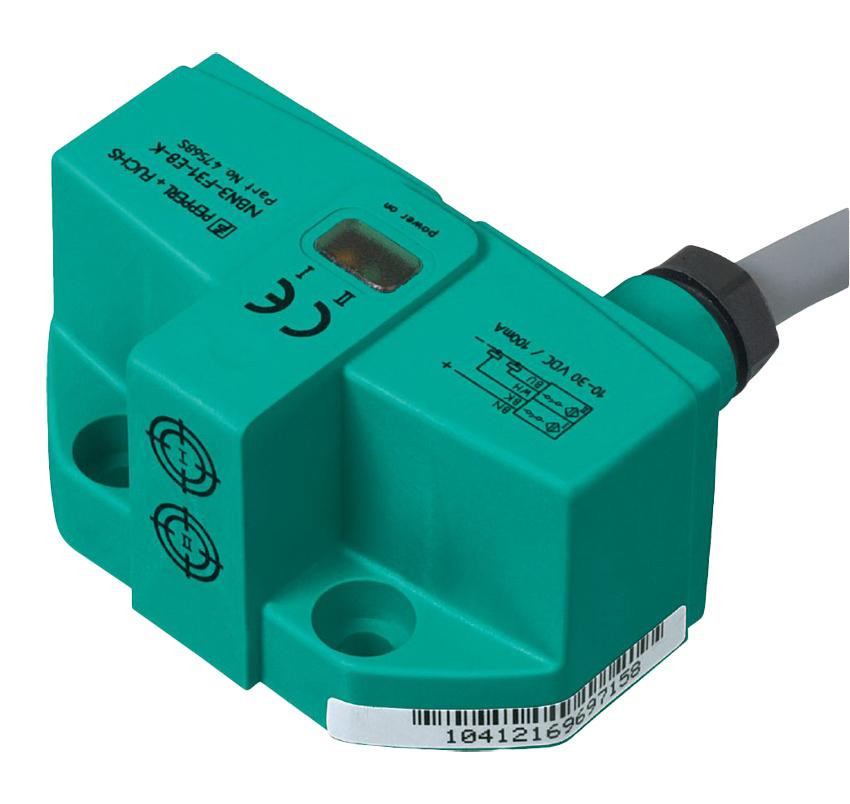

Inductive Proximity Sensor, 3-Wire DC, Flush, Direct Mounting on Standard Actuators, Fixed Setting, 10-30VDC, 3mm Range, PNP 2NO, 5m PVC Cable, IP67, Returns of This Item Must Be Approved by Manufacturer
- Weight:
- 1.25 LBS
- Minimum Purchase:
- 1 unit
Description
Pepperl+Fuchs was founded in 1945 as a small radio workshop in Germany by Walter Pepperl and Ludwig Fuchs. They eventually invented the proximity switch!
Their products include proximity, ultrasonic and photoelectric sensors, explosion protection products, visions systems as well as connectivity and remote I/O options.
The U.S headquarters is located in Twinsburg, Ohio.
Features Include:
- Switching function: 2 x normally open (NO)
- Output type: PNP
- Rated operating distance: 3 mm
- Installation: flush mountable
- Output polarity: DC
- Assured operating distance: 0 - 2.43 mm
- Actual operating distance: 2.7 - 3.3 mm typ.
- Output type: 3-wire
- Nominal ratings
- Operating voltage: 10 - 30 V DC
- Switching frequency: 0 - 500 Hz
- Hysteresis typ. 5 %
- Reverse polarity: protection all connections
- Short-circuit protection: pulsing
- Voltage drop: ≤ 3 V
- Operating current: 0 - 100 mA
- Off-state current: 0 - 0.5 mA typ. 0.1 µA at 25 °C
- No-load supply current: ≤ 25 mA
- Time delay before availability ≤
- Operating voltage indicator: LED, green
- Switching state indicator: LED, yellow
- Ambient temperature: -25 - 70 °C (-13 - 158 °F)

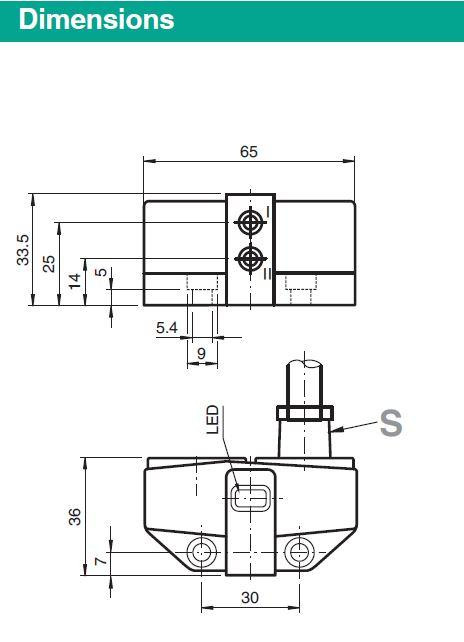

- Mechanical specifications
- Connection (system side): PVC cable 5 m
- Core cross-section (system side): 0.75 mm2
- Housing material: PBT
- Sensing face: PBT
- Degree of protection: IP67
- Cable diameter: 6.8 mm ± 0.2 mm
- Bending radius: > 10 x cable diameter
Technical Information:
