02509ST3QIE326T-W22
Alt: 11584354
$6,628.50

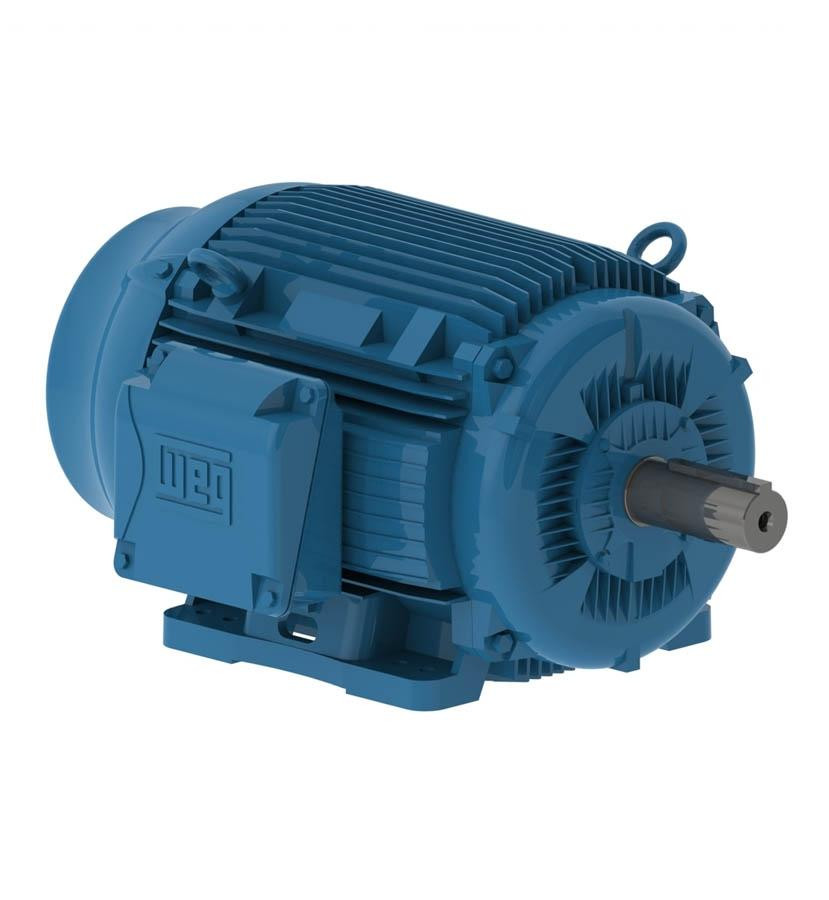

Motor, 25hp, 18.5kW, 880rpm, 8-Pole, Three Phase, 460V, 60Hz, 324/6T Cast Iron Frame, NEMA Premium Efficiency, IC411 TEFC, Footed/No Flange, F-1 Mounting, Left Position Terminal Box, IP55 (Cannot Ship UPS, Drop Ship Only via Truck)
- Weight:
- 603.00 LBS
- Minimum Purchase:
- 1 unit
Description
WEG is a global manufacturer of electric motors, variable frequency drives, soft starters and controls. The controls line includes contactors, starters, circuit breakers and much more.
WEG Electric Corp. USA, located in Duluth, GA, has a number of distribution centers including one right here in the Chicago area.
Specifications
Alternate Part Number
11584354
Frame
324/6T
Horsepower
25 hp
Mounting
Footed (Rigid Base)
Motor Type
TEFC, Cast Iron
Phase
Three Phase
All - Specific Ratings
IP55
RPM
900
Series
Severe Duty
All - Voltage
460/480VAC
Warranty
18 Months
Weight
603.0000
Features Include:
- Standard: NEMA MG-1
- Frequency: 60/50 Hz
- Voltage: 460 V
- Number of poles: 8
- Degree of Protection: IP55
- Synchronous speed: 880 rpm
- Output rating: 25 HP (18.5 kW)
- Mounting: Foot-mounted
- Flange: Without
- Mounting: F-1
- Terminal box¹: Left position
- Enclosure: IC411 - TEFC
- Frame: 324/6T
- Rated current: 35.9 A
- L. R. Amperes: 187 A
- No load current: 20.0 A
- Rated torque: 149 ft.lb
Downloads
- Weg 02509ST3QIE326T-W22 Motor Datasheet
- Weg W22 Three-Phase Electrical Motor Brochure
- Weg W22 Three-Phase Electric Motor Technical Catalog
- Weg Three-Phase General Purpose Motor Catalog
- Weg Three-Phase General Purpose Motor Instruction Manual
- Weg Three-Phase General Purpose Motor Operation Manual
- Weg Product Number Configuration
- Weg Standard Product Catalog
- Warranty Terms for Weg Automation Products
- 'Extend to a 3 Year Warranty' Form
