Weg
00118OT1B56C-S
Motor, 1hp, 1800rpm, 4 Pole, 56C Frame, Single Phase, 115/208-230V, 60Hz, NEMA MG-1, Rolled Steel, IC01 ODP, Footed/C Flange, F-1 Mounting, No Terminal Box
$336.75

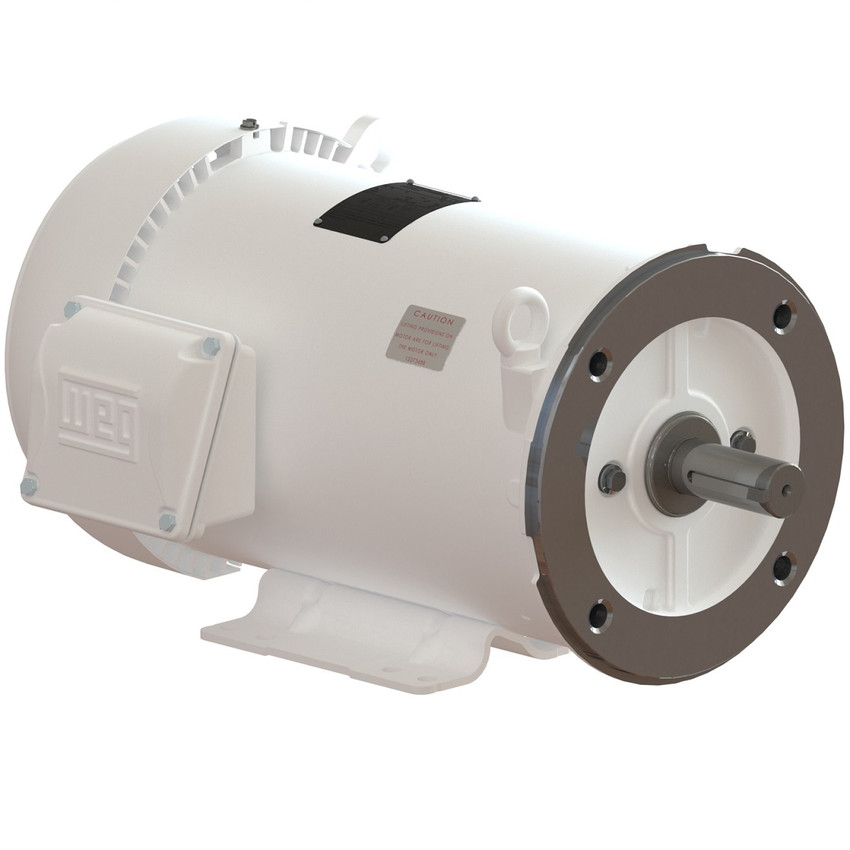

01518ET3EHW254TC-S
Alt: 15228482
$3,619.50
Motor, 15hp, 1800rpm, 4-Pole, Three Phase, 230/460//190-220/380-415V, 60//50Hz, 254/6TC Frame, TEFC, Wash Down HydroWash NEMA Premium Efficiency White Epoxy Rolled Steel, Footed, C Face, F-1 Mounting, Left Position Terminal Box, IP56
- Weight:
- 243.00 LBS
- Minimum Purchase:
- 1 unit
Description
The WEG Hydrowash series was designed for applications where there is a constant need for hygiene and cleanliness of the environment through high pressure water jets and/or chemical products.
This is a general purpose, 3 phase wash down duty motor!
Washdown motors are applied in food, beverage and pharmaceutical industries.
Standard Features:
- Output: 1/2 up to 25 HP
- Frames: 56 up to 254/6T
- Number of poles: 2 up to 6
- Certification CSA/UL
- Efficiency: NEMA Standard and NEMA Premium
- Voltage: Frames 56 and 145T - 208-230/460 V with 9 leads Frames 182/4T and 213/5T - 208-230/460//190-220/380-415 V with 9 leads Frames 254/6T - 208-230/460//190-220/380-415 V with 12 leads
- Service factor: 1.15
- Mounting: F-1
- Insulation class “F” (ΔT 80 K)
- Degree of protection: IP56
- Shaft material: Stainless Steel (AISI 304)
- Bearing type: Shielded (2RS)
- Permatex on joints for frames 182/4T and above
- Viton O’Ring on joints for frames 56 and 145T
- Color: Porcelain White - Munsell N 9.5
- Coating NOBAC® for frames 180 and above
- Internal painting: Tropicalized (Epoxy for frames 180 and above)
- Breather on non-drive end shield
- Vibration: Grade A
- Drive end bearing seal: Frames 56 and 145T - Oil seal stainless steel spring + slinger (stainless steel) Frames from 182/4T and above - Oil seal stainless steel spring + slinger (stainless steel)
- Non drive end bearing seal: Frames 56 and 145T - Oil seal stainless steel spring Frames from 182/4T and above - Oil seal stainless steel • Type of grease: Mobil Polyrex EM
- Fan material: plastic
- Aluminum flanges
- Terminal box material: Aluminum
- External screws and key: Stainless Steel
