Weg
01012ET3E256TC-W22

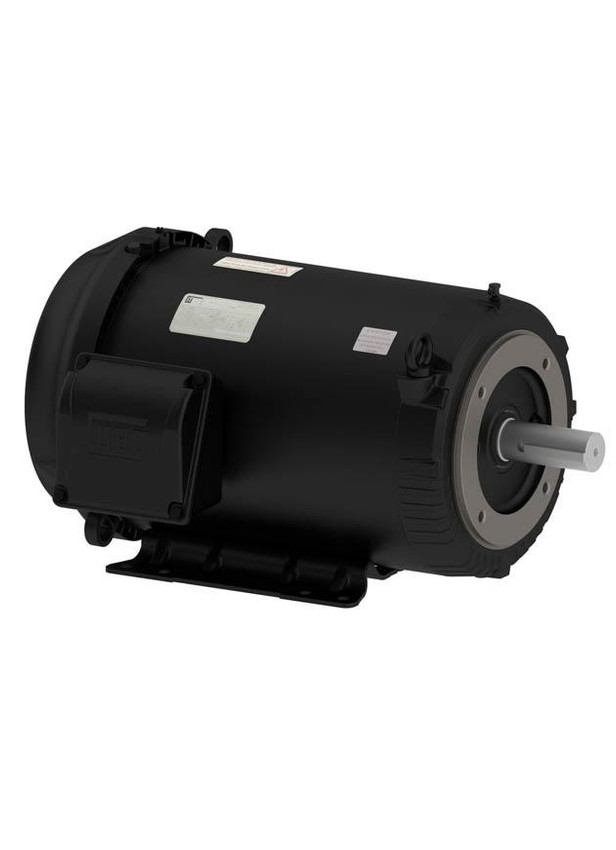

Motor, 10hp, 1200rpm, 3 Phase, 208-230/460V, 254/6TC, NEMA Premium Efficiency TEFC, Footed/C Face, Heavy Duty
$1,848.75
01012ET3E256TC-S
Alt: 14122321
$1,611.00
Motor, 10hp, 1200rpm, 3 Phase, 208-230/460V, 254/6TC, NEMA Premium Efficiency TEFC, Footed/C Face, Rolled Steel
- Weight:
- 277.00 LBS
- Minimum Purchase:
- 1 unit
Description
Motor, 3 Phase, 10hp, 1200rpm, C-Face, Foot Mnt, Rolled Steel, 208-230/460V, 256TC Frame,
Product Features:
Frame
- 254/6TC
Rated Voltage
- 208-230/460 V
Frequency
- 60 Hz
Rated Speed
- 1175 rpm
No Load Current
- 7.12-14.2/7.12 A A
Rated Current
- 30.5-27.6/13.8 A
Rated Torque
- 44.1 ft.lb
Frame Material
- Rolled Steel
Approx. Weight
- 255 lb
Need More Information?
- Weg Rolled Steel Line Motor Catalog
- Weg New Rolled Steel Platform Motor Brochure
- Weg Three Phase General Purpose Motor Catalog
- Weg Three Phase General Purpose Motor Instruction Manual
- Weg Three Phase General Purpose Motor Operation Manual
- Weg Product Number Configuration
- Weg CWB Contactors Catalog
- Weg Standard Product 2020 Catalog
- Warranty Terms for Weg Automation Products
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Weg
00118OT1B56C-S
Motor, 1hp, 1800rpm, 4 Pole, 56C Frame, Single Phase, 115/208-230V, 60Hz, NEMA MG-1, Rolled Steel, IC01 ODP, Footed/C Flange, F-1 Mounting, No Terminal Box
$336.75
$9.20
Weg
00212OT3E184TC-S
Motor, 2hp, 1200rpm, 230/460//190-220/380-415V, 182/4TC, NEMA Premium Efficiency, Footed/C-Face, Rolled Steel
$476.25
Weg
00318OT3ER182TC-S
Motor, 3hp, 1800rpm, 3 Phase, 4-Pole, 230/460//190-220/380-415V, 60//50 Hz, 182/4TC Frame, NEMA Premium Efficiency IC01 - ODP, Footless/C Face, Rolled Steel
$465.00
Weg
00312ET3E213TC-S
Motor, 3hp, 1200rpm, 3 Phase, 208-230/460V, 213/5TC, NEMA Premium Efficiency TEFC, Footed/C Face, Rolled Steel
$771.00
Weg
01536ET3E254T-S
Motor, 15hp, 3600rpm, 3 Phase, 208-230/460V, 254/6T, NEMA Premium Efficiency TEFC, Footed/No Flange, Rolled Steel
$1,191.75
Weg
00212OT3ER184TC-S
Motor, 2hp, 1200rpm, 6 Pole, 182/4TC Frame, Three Phase, 230/460//190-220/380-415V, 60//50Hz, Rolled Steel NEMA Premium Efficiency, IC01 ODP, Footless/C Flange, W-6 Mounting, Left Position Terminal Box, IP20
$488.56
Weg
01018OT3E215T-S
Motor, 10hp, 1800rpm, Three Phase, 208-230/460V, 213/5T, NEMA Premium Efficiency ODP, Footed/No Flange, Rolled Steel, (Cannot Ship UPS, Drop Ship Only via Truck)
$826.50
